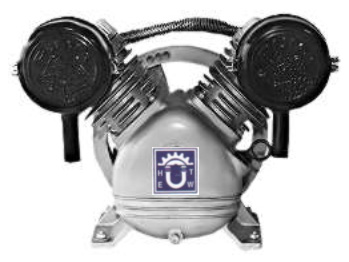

2 HP Compressor Pump



Cast Iron Cylinder, and Cylinder Head.



. Working pressure: 90-115 PSI. Max. pressure: 170 PSI. Compressor pulley: 10-0" Dia. Driving motor pulley:

 4-00" Dia. Working compressor: 1120 RPM. Motor: 2800 RPM. Pipe outlet:1/2". Bore: 2.01. Stroke: 1.81.

 CFM @ 40 & 90 PSI: 7.04 & 6. Weight: 46 lbs.

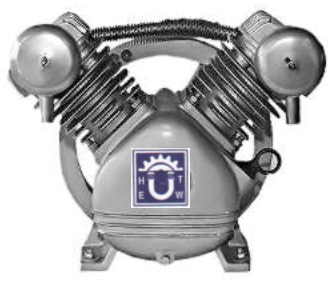

3 HP Compressor Pump

Cast Iron Cylinder, and Cylinder Head.

Working pressure: 90-115 PSI. Max. pressure: 170 PSI. Compressor pulley: 10-00”  Dia. Driving motor pulley

3-1/2" Dia.Working compressor: 1120 RPM. Motor: 2800 RPM. Pipe outlet: 1/2". Bore 2.56. Stroke 1.81.

CFM @ 40 & 90 PSI 11.44 & 9.75. Weight 55 lbs.
